With their combination of optical clarity, mechanical strength, and enhanced bonding capabilities, metallized sapphire windows are essential components across a wide range of industries.
While bare sapphire windows still offer exceptional optical clarity and durability, the metallization process provides superior adhesion for soldering and brazing, creating a hermetic seal that protects sensitive components from environmental factors. This makes metallized sapphire windows invaluable in industries like aerospace, medical devices, and chemical processing, where they can reliably maintain their optical performance even under the harshest conditions.
Elcon Precision delivers high-quality metallized sapphire with shorter lead times. With more than five decades of industry experience, the Elcon team offers metallized sapphire windows to create hermetically sealed optics for harsh or vacuum applications. Our team has expertise in a variety of application methods and is capable of metallizing flat, cylindrical, and complex ceramic bodies from prototyping through production.
This article breaks down the features and benefits of metallized sapphire windows, their key applications across industries, the metallization process, and Elcon's capabilities in delivering superior sapphire components.

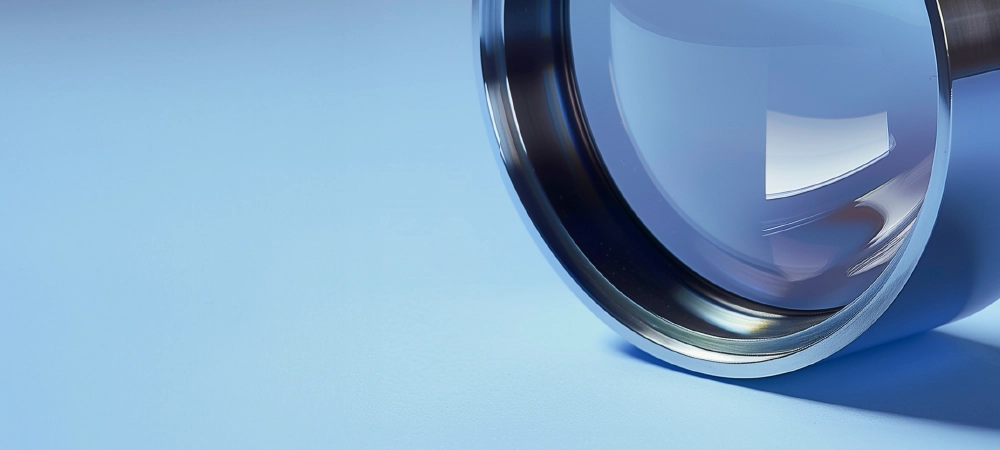

What are Metallized Sapphire Windows & Lens?

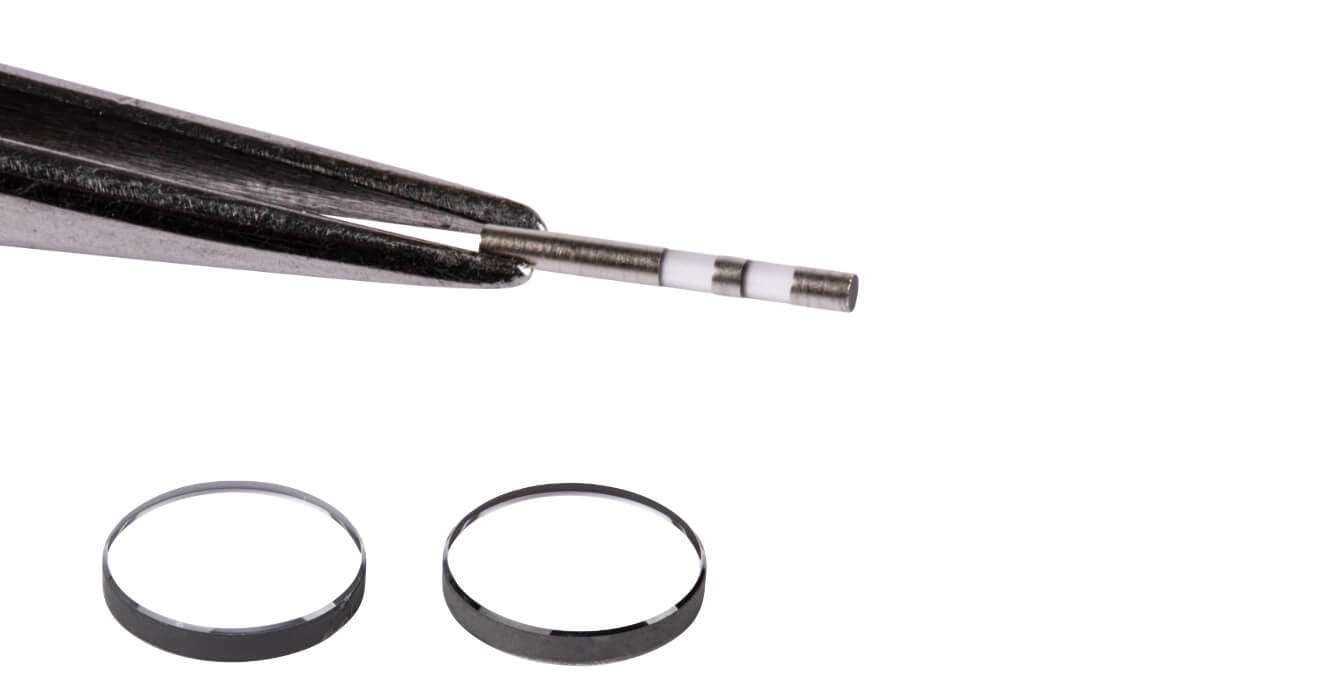

Metallized Sapphire Windows are versatile and durable optical components designed for applications requiring exceptional performance and reliability. Featuring metallized edge surfaces, these windows can be securely soldered or brazed into assemblies, creating a hermetic seal that protects sensitive components from harsh environmental factors like moisture, gasses, and contaminants. This solderability and hermetic sealing capability make them indispensable in diverse fields such as chemical processing, medical devices, and aerospace.
Unlike bare sapphire, which cannot bond to braze or solder alloys, metallized sapphire windows provide the necessary bonding interface for secure and reliable integration into metal housings.
The Benefits and Features of Metallized Sapphire Windows
Metallized sapphire windows offer a unique combination of optical and mechanical properties and are versatile components ideal for various applications. They are known for their exceptional hardness, scratch resistance, and thermal shock resistance. They are often used in medical devices, aerospace, and chemical processing due to their ability to withstand harsh environments.
Key Features:
- Versatility: Metallized sapphire can be brazed to various kinds of metals such as nickel, kovar, and stainless steel. Sapphire viewports can be brazed to vacuum flanges, allowing for secure integration into different assemblies.
- Solderability: Sapphire Windows metallized with Mo/Mn can be plated with gold around their edges, ensuring they meet MIL-STD-883 solderability standards. This guarantees reliable and secure integration into microelectronic assemblies, making them suitable for a wide range of military and aerospace electronic systems.
- Hermetic Sealing: The metallized edges of these windows form a hermetic seal when bonded, effectively safeguarding sensitive components from moisture, gasses, and contaminants.This is critical for applications that require airtight and long-term reliability.
- Durability: Metallized and brazed sapphires are much more heat resistant and air-tight compared to using adhesives. This makes them ideal for environments where thermal stability and air-tightness are crucial.
- Chemical and Plasma Sanitation: With a construction that withstands harsh chemical reactions and extreme temperatures, Metallized Sapphire Windows excel in environments involving chemical and plasma sanitation processes, making them perfect for industrial settings.
Material Selection: Comparing Bare Sapphire and Metallized Sapphire Windows
Bare sapphire windows, while offering exceptional optical clarity and durability, require an intermediary metal like molybdenum/manganese (Mo/Mn) to bond with braze or solder alloys due to their chemical purity. In contrast, metallized sapphire windows feature a metallized edge surface, enhancing their versatility and bonding capabilities.
This metallization process provides superior adhesion for soldering and brazing, creating a hermetic seal that protects sensitive components from environmental factors. Compared to their bare sapphire counterparts, metallized sapphire windows offer enhanced durability, reliability, and applicability in demanding environments.
The Metallization Process: Understanding the Science behind Sapphire Metallization
The process begins with catalytically activating the sapphire surface to ensure proper paint adhesion. A layer of molybdenum/manganese (Mo/Mn) is then deposited, followed by nickel or gold plating for enhanced solderability and corrosion resistance.
This metallization creates a robust and conductive edge surface, enabling the solderable sapphire windows to be securely bonded or soldered into a metal housing for subsequent assemblies. The result is a hermetically sealed, highly durable component suitable for harsh and demanding environments.
The Key Applications of a Metallized Sapphire Window
1. Chemical Processing
These robust and reliable components are extensively used in chemical processing equipment where resistance to corrosive substances and high temperatures is critical. They ensure optical clarity and structural integrity under demanding conditions.
2. Plasma Applications
Plasma research and industrial plasma applications use metallized sapphire windows as viewports for observing and controlling plasma reactions. Their resistance to plasma-induced damage is a key advantage.
3. Infrared Imaging
Metallized sapphire windows play a crucial role in infrared imaging systems. Their high transmission in the infrared spectrum and durability ensure clear and reliable imaging in thermal imaging devices and IR cameras.
4. Medical Devices
The use of sapphire windows is common in medical devices such as endoscopes and optical sensors. Metallized versions ensure airtight seals, preventing contamination of sensitive medical equipment and optics.
5. Aerospace and Defense
In military and aerospace applications, metallized sapphire windows are used in optical systems and sensor assemblies, where their robustness and resistance to harsh conditions are vital for reliable performance.
6. Scientific Instruments
They are used in various scientific instruments, including spectrometers and laser systems, where optical precision and long-term performance are required.
7. Opto-Electronic Assemblies
These windows are crucial in opto-electronic assemblies across industries, ensuring optical integrity and protection of delicate electronic components.
Elcon Precision's Expertise in Metallized Sapphire Windows
Elcon Precision metallizes precision ceramic and sapphire components used in critical assemblies brazed by our in-house team or by other brazing suppliers and OEMs. Our metallization creates a strong and robust bond to many different ceramic bodies and has nearly universal applicability for ceramic to metal brazing.
Our experienced team offers metallized sapphire windows to create hermetically sealed optics for harsh or vacuum applications. We work closely with partners to supply custom raw sapphire components of various geometries, which are then metallized and brazed into a metal housing like a flange or sleeve. Our in-house capability includes designing tools, metrology fixtures, and assembly frames for precision fabrication.
Continuously innovating and evolving its processes in coating techniques, material formulations/testing, and quality control, Elcon Precision is leading the way in ceramic metallization.
Offering a full turnkey solution, our end-to-end services cover everything from material sourcing right through to prototype testing.
The Future of Sapphire Metallization
The future of sapphire metallization lies in further advancements in material science and coating technologies. Innovations will continue to enhance the optical and mechanical properties of metallized sapphire windows, making them even more robust and versatile. As industries demand higher performance and reliability, metallized sapphire windows will remain at the forefront of cutting-edge applications, from medical devices to aerospace and beyond.
Here at Elcon, Silicon Valley innovation is in our DNA. We're leading the way in sapphire metallization by continuously innovating and evolving our coating techniques, material formulations/testing, and quality control processes.
Collaborating with an array of approved ceramic vendors, we shorten the machining process of ceramics and improve metallization lead times. We also ensure the highest levels of performance and reliability through advanced quality control measures and comprehensive engineering support. In addition to our stringent quality standards, we are also AS9100D-certified, ISO 9001:2015-certified, ITAR-registered, and RoHS-compliant — proving our commitment to industry-best quality.
